Digital Medical X-Ray equipment

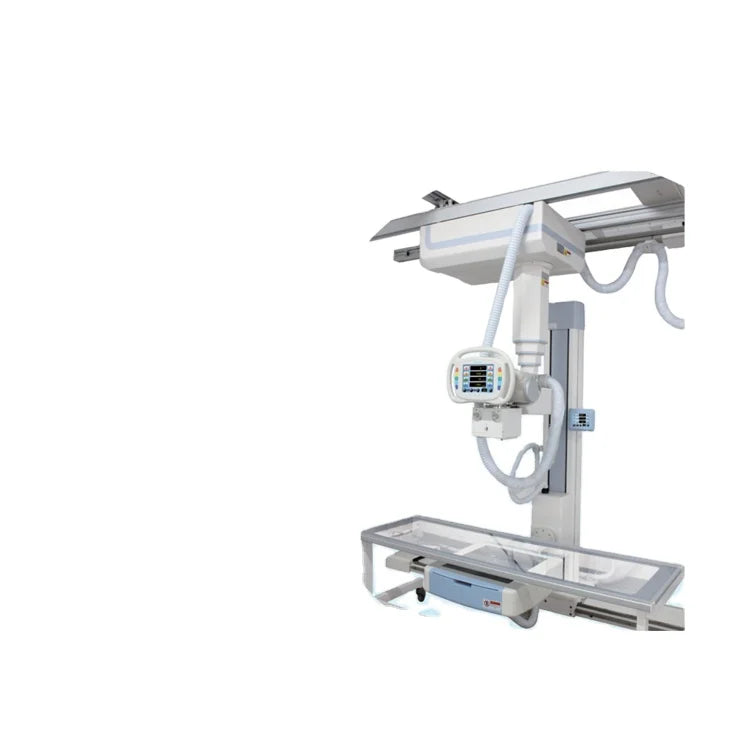

Discover the future of medical imaging with the SY-D9600A Digital Medical X-Ray Equipment, a cutting-edge X-ray Photography System designed to revolutionize radiography in diverse healthcare settings. This high-frequency overhung digital X-ray radiography system offers unparalleled flexibility, efficiency, and multidimensional movement, ensuring precise diagnostics and enhanced patient care.

Key Features:

1. Versatile Application: The SY-D9600A is the epitome of adaptability, catering to a wide range of medical departments such as radiography, orthopedics, wards, emergency rooms, operation rooms, and ICUs. It seamlessly addresses the imaging needs of various body parts, including the head, limbs, chest, spine, lumbar, and stomach.

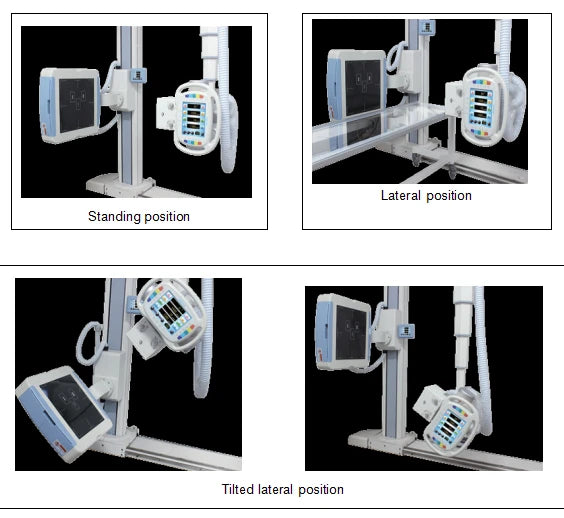

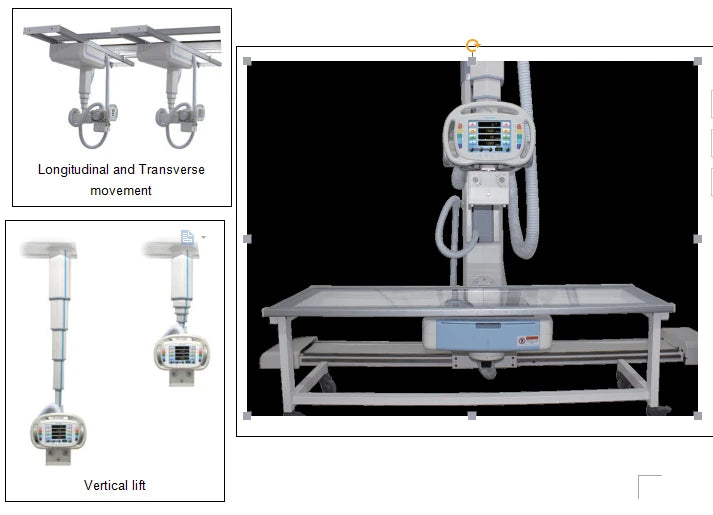

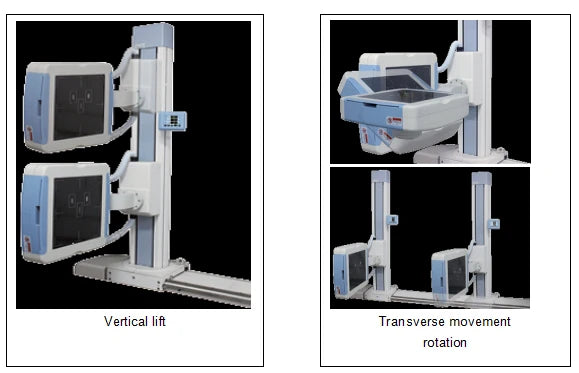

2. Flexible and Efficient Movement: With a suspension frame design and a multidimensional removable Chest stand, this X-ray system provides extensive coverage for radiography. Its flexible design allows for efficient movement, meeting the diverse radiography requirements of different scenarios.

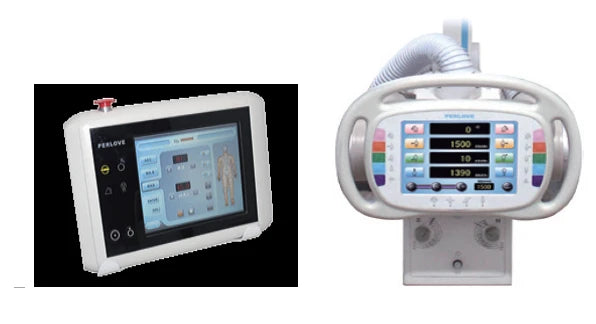

3. Humanized Design for Convenience: Boasting a human graphical operation interface, a true-color LCD touch screen, and a digital intelligent control system, the SY-D9600A offers a user-friendly experience. Customizable parameter settings, adult or child photography characteristics, and a two-step exposure handbrake make operation convenient and efficient.

4. High-Performance X-ray Tube: The X-ray tube assembly features a focus of 0.6/1.2mm, a power of 55kW, and an anode heat capacity of 210kJ (300kHU). The tube's advanced specifications, including a 12° anode target angle and 8400rpm anode speed, contribute to superior imaging quality.

5. Advanced Electrical Performance: The system's electrical performance includes a maximum output power of 55kW, a high-frequency inverter frequency of 60kHz, and a wide photography voltage range (40~150kV). With exposure time, mA range, mAs range, automatic exposure control (AEC), and hundreds of APR exposure programs, the SY-D9600A ensures optimal imaging with precision and reliability.

6. Automatic Error Reporting and Preset Programs: The system includes automatic error reporting for enhanced reliability and safety. With preset hundreds of APR exposure programs, it streamlines the radiography process, saving time and ensuring consistency.

Disclaimer:

The SY-D9600A Digital Medical X-Ray Equipment information provided here is for illustrative purposes only. While every effort has been made to ensure the accuracy of the information, the specifications and features are subject to change without prior notice. Users are encouraged to refer to the latest product documentation and consult with our technical support for the most up-to-date information.

This medical diagnostic equipment is intended for use by trained medical professionals in authorized healthcare settings. It is essential to adhere to safety protocols and guidelines during operation to minimize risks associated with X-ray exposure.

Product availability and specifications may vary based on geographical location and market conditions. We shall not be liable for any direct, indirect, incidental, special, or consequential damages arising out of or in any way connected with the use or performance of this medical X-ray equipment.
