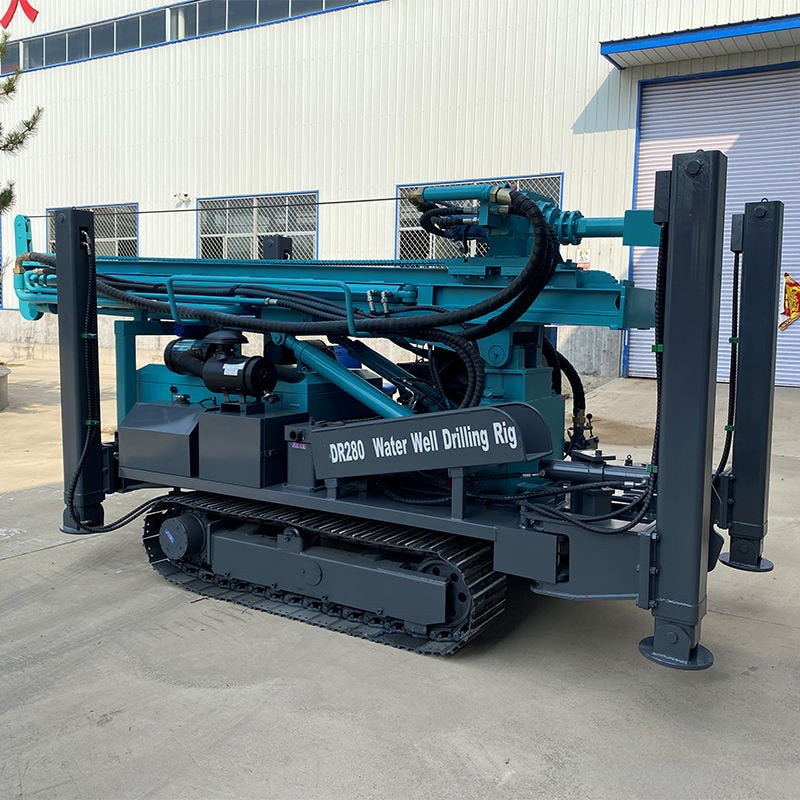

New Diesel Engine Well Drilling Rig
New Diesel Engine Well Drilling Rig
Couldn't load pickup availability
Looking for a powerful and reliable well drilling rig that can help you dig deep into the ground and extract water? Our 22HP Diesel Engine Well Drilling Rig is the perfect solution for all your drilling needs! Equipped with a powerful diesel engine and advanced drilling technology, this machine can bore down to 100m deep and extract water from the earth with ease. It comes with a range of optional alloy coring bits that can help you customize the drilling process to meet your exact needs. Whether you are a professional contractor or a homeowner, this machine is ideal for all types of drilling applications.
Disclaimer:
Please note that the 22HP Diesel Engine Well Drilling Rig is a powerful and complex piece of equipment that requires careful operation and maintenance. It is important to follow all safety guidelines and instructions provided by the manufacturer in order to ensure the safe and effective use of this machine. Additionally, please be aware that drilling in certain locations may require permits or licenses, so it is important to check local regulations before using this machine. Finally, please note that we do not offer refunds or returns for this product, as it is a heavy-duty machine that is built to last.
TRSZJ-180
|
Main Parameters |
|||
|
TRSZJ-180 |
|||
|
Weight |
4.5T |
Air consumption |
17-31m³/min |
|
Bore diameter |
140-254mm |
Drill rod diameter |
Φ76 Φ89 |
|
Drilling depth |
180m |
Drill rod length |
1.5m 2.0m 3.0m |
|
Stroke |
3.4m |
Elevating capacity |
15T/15KN |
|
Travelling speed |
2.5km/h |
Swing speed |
45-65rpm |
|
Power |
55KW |
Swing torque |
3200-4600N.M |
|
Rated pressure |
1.7-2.5mpa |
Dimensions |
3800*1500*2200mm |
TRSZJ-200
|
TRSZJ-200 |
|||
|
Weight |
5.8T |
Air consumption |
17-30m³/min |
|
Bore diameter |
140-305mm |
Drill rod diameter |
Φ76, Φ89 |
|
Drilling depth |
200m |
Drill rod length |
1.5m 2.0m 3.0m |
|
Stroke |
3.4m |
Elevating capacity |
15T |
|
Travelling speed |
2.5km/h |
Swing speed |
45-70rpm |
|
Power |
65-70KW |
Swing torque |
3500-4800N.M |
|
Rated pressure |
1.7-3.0mpa |
Dimensions |
4000*1750*2450mm |
TRSZJ-300
|
TRSZJ-300 |
|||
|
Weight |
9T |
Air consumption |
17-35m³/min |
|
Bore diameter |
140-325mm |
Drill rod diameter |
Φ89, Φ102 |
|
Drilling depth |
300m |
Drill rod length |
1.5m 2.0m 3.0m 6m |
|
Stroke |
6.6m |
Elevating capacity |
20T |
|
Travelling speed |
2.5km/h |
Swing speed |
55-115rpm |
|
Power |
84KW |
Swing torque |
6200-8500N.M |
|
Rated pressure |
1.7-3.3mpa |
Dimensions |
5900*2000*2850mm |
TRSZJ-400
|
TRSZJ-400 |
|||
|
Weight |
10T |
Air consumption |
17-35m³/min |
|
Bore diameter |
140-350mm |
Drill rod diameter |
Φ89, Φ102, Φ108 |
|
Drilling depth |
400m |
Drill rod length |
1.5m 2.0m 3.0m 6.0m |
|
Stroke |
6.6m |
Elevating capacity |
22T |
|
Travelling speed |
2.5km/h |
Swing speed |
45-115rpm |
|
Power |
92KW |
Swing torque |
6500-9000N.M |
|
Rated pressure |
1.7-3.5mpa |
Dimensions |
5900*2100*2850mm |
TRSZJ-500
|
TRSZJ-500 |
|||
|
Weight |
11T |
Air consumption |
17-35m³/min |
|
Bore diameter |
140-350mm |
Drill rod diameter |
Φ89, Φ102, Φ108 |
|
Drilling depth |
500m |
Drill rod length |
1.5m 2.0m 3.0m 6.0m |
|
Stroke |
6.6m |
Elevating capacity |
25T |
|
Travelling speed |
2.5km/h |
Swing speed |
45-115rpm |
|
Power |
118KW |
Swing torque |
7000-9500N.M |
|
Rated pressure |
1.7-3.5mpa |
Dimensions |
5900*2100*2850mm |
TRSZJ-600
|
TRSZJ-600 |
|||
|
Weight |
12T |
Air consumption |
17-35m³/min |
|
Bore diameter |
140-350mm |
Drill rod diameter |
Φ108 , Φ114, Φ127 |
|
Drilling depth |
600m |
Drill rod length |
1.5m 2.0m 3.0m 6.0m |
|
Stroke |
6.6m |
Elevating capacity |
28T |
|
Travelling speed |
2.5km/h |
Swing speed |
45-115rpm |
|
Power |
132KW |
Swing torque |
8500-11000N.M |
|
Rated pressure |
1.7-3.5mpa |
Dimensions |
6000*2200*2850mm |
